Opel Corsa: Electronic climate control system / Manual settings

Climate control system settings can be changed by activating the following functions:

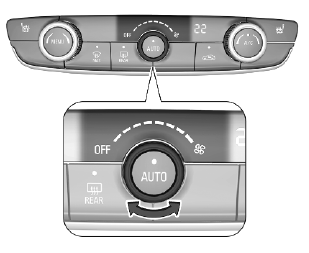

Fan speed Opel Corsa. Manual settings

Opel Corsa. Manual settings

Adjust the air flow by turning rotary ring to the desired speed. Turn anticlockwise to decrease or turn clockwise to increase. Fan speed can also be changed in the climate settings menu. Press MENU to enter the menu.

Turn rotary ring anticlockwise as far as it will go: fan and cooling are switched off.

To return to automatic mode, press AUTO.

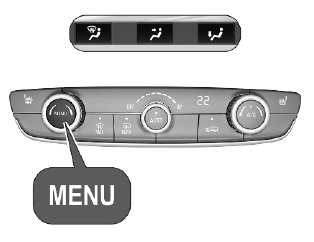

Air distribution Opel Corsa. Manual settings, Opel Corsa. Manual settingsOpel Corsa. Manual settings

Opel Corsa. Manual settings

Press MENU to enter the menu.

Touch in the Info Display:

Opel Corsa. Manual settings : to windscreen and front door windows

Opel Corsa. Manual settings : to head area and rear seats via adjustable air vents

Opel Corsa. Manual settings : to front and rear foot well and windscreen

To return to automatic air distribution, press AUTO.

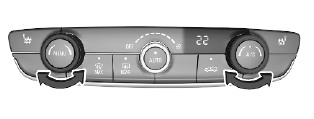

Temperature preselection :

Opel Corsa. Manual settings

Set the preselected temperatures to the desired value using the left or the right rotary ring.

Recommended temperature is 22 °C. The temperature is indicated in the display and in the climate settings menu.

If the minimum temperature Lo is set, the climate control system runs at maximum cooling, if cooling A/C is switched on.

If the maximum temperature Hi is set, the climate control system runs at maximum heating.

Note

If A/C is switched on, reducing the set cabin temperature can cause the engine to restart from an Autostop or inhibit an Autostop.

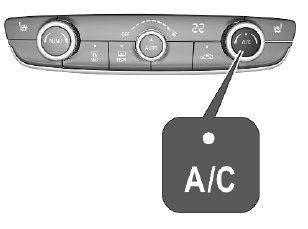

Air conditioning A/C

Opel Corsa. Manual settings

Press A/C to switch on cooling. The LED in the button illuminates to indicate activation. Cooling is only functional when the engine is running and climate control fan is switched on.

Press A/C again to switch off cooling. The air conditioning system cools and dehumidifies (dries) when outside temperature is above a specific level. Therefore, condensation may form and drip from under the vehicle. If no cooling or drying is required, switch off the cooling system for fuel saving reasons.

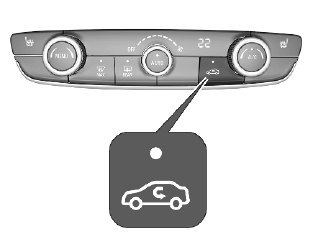

Manual air recirculation Opel Corsa. Manual settings

Opel Corsa. Manual settings

Press Opel Corsa. Manual settings to activate the air recirculation mode. The LED in the button illuminates to indicate activation.

Press Opel Corsa. Manual settings again to deactivate recirculation mode.

Warning

The exchange of fresh air is reduced in air recirculation mode. In operation without cooling, the air humidity increases, so the windows may mist up from inside. The quality of the passenger compartment air deteriorates, which may cause the occupants to feel drowsy.

In warm and very humid ambient air conditions, the windscreen may mist up from outside, when cold air is directed towards it. If windscreen mists up from outside, activate windscreen wiper and deactivate Opel Corsa. Manual settings.

Demisting and defrosting the windows Opel Corsa. Manual settings

Opel Corsa. Manual settings

  • Press Opel Corsa. Manual settings. The LED in the button illuminates to indicate activation.
  • Temperature and air distribution are set automatically and the fan runs at high speed.
  • Switch on air conditioning by pressing A/C, if required.
  • Switch on heated rear window Opel Corsa. Manual settings.
  • To return to previous mode, press Opel Corsa. Manual settings again. To return to automatic mode, press AUTO.

Note

If Opel Corsa. Manual settings is pressed while the engine is running, an Autostop will be inhibited until Opel Corsa. Manual settings is pressed again.

If Opel Corsa. Manual settings is pressed while the engine is in an Autostop, the engine will restart automatically.

Deactivation of electronic climate control system

Cooling, fan and automatic mode can be switched off by turning one of the rotary rings anticlockwise.

Activation by switching on the fan or pressing AUTO.

Heated rear window, windscreen and exterior mirrors Opel Corsa. Manual settings.

    Automatic mode AUTO

    Basic setting for maximum comfort: Press AUTO, the air distribution and fan speed are regulated automatically. Open all air vents to allow optimised air distribution in automatic mode...

    Auxiliary heater

    Air heater Quickheat is an electric auxiliary air heater which automatically warms up the passenger compartment more quickly...
