Opel Corsa: Vehicle checks / Bonnet

Opening

Open the driver's door.

Opel Corsa. Bonnet

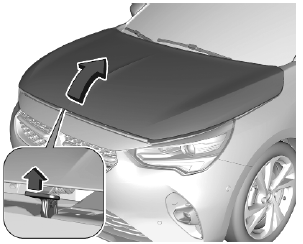

Pull the release lever and return it to its original position.

Opel Corsa. Bonnet

Push the safety catch upwards and open the bonnet.

Opel Corsa. Bonnet

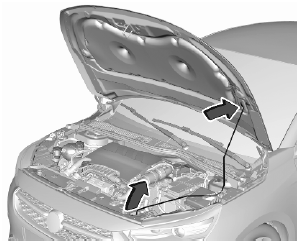

Secure the bonnet support.

Closing

Before closing the bonnet, press the support into the holder.

Lower the bonnet and let it fall into the latch from a low height (20-25 cm). Check that the bonnet is engaged.

Caution

Do not press the bonnet into the latch to avoid dents.

    Performing work

    Warning Only perform engine compartment checks when the ignition is off. The cooling fan may start operating even if the ignition is off. Danger The ignition system uses extremely high voltage...

    Engine oil

    Check the engine oil level manually on a regular basis to prevent damage to the engine. Ensure that the correct specification of oil is used. The maximum engine oil consumption is 0...
